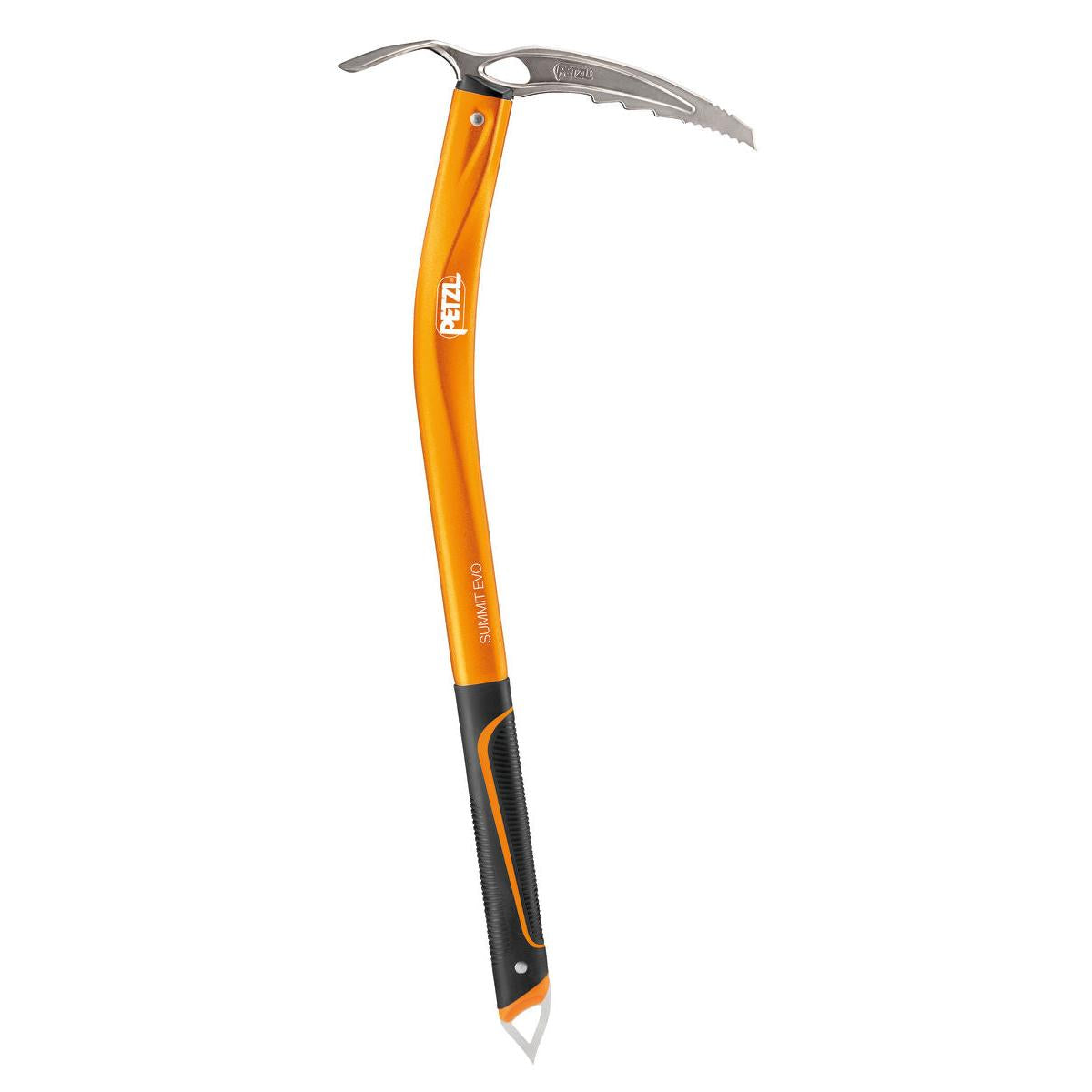

Summit Evo Ice Axe

Certifications

• CE
• UIAA
• UKCA

Materials

• heat-treated steel
• aluminum 7075
• stainless heat-treated steel
• TPU (thermoplastic polyurethane)

Pick & Shaft

• Pick type: 1
• Shaft type: 1

Construction Details

• Waterjet-formed tube for a comfortable grip under the head of the axe
• Curved shaft provides clearance on steep, icy terrain; upper part is curved and lower part is straighter

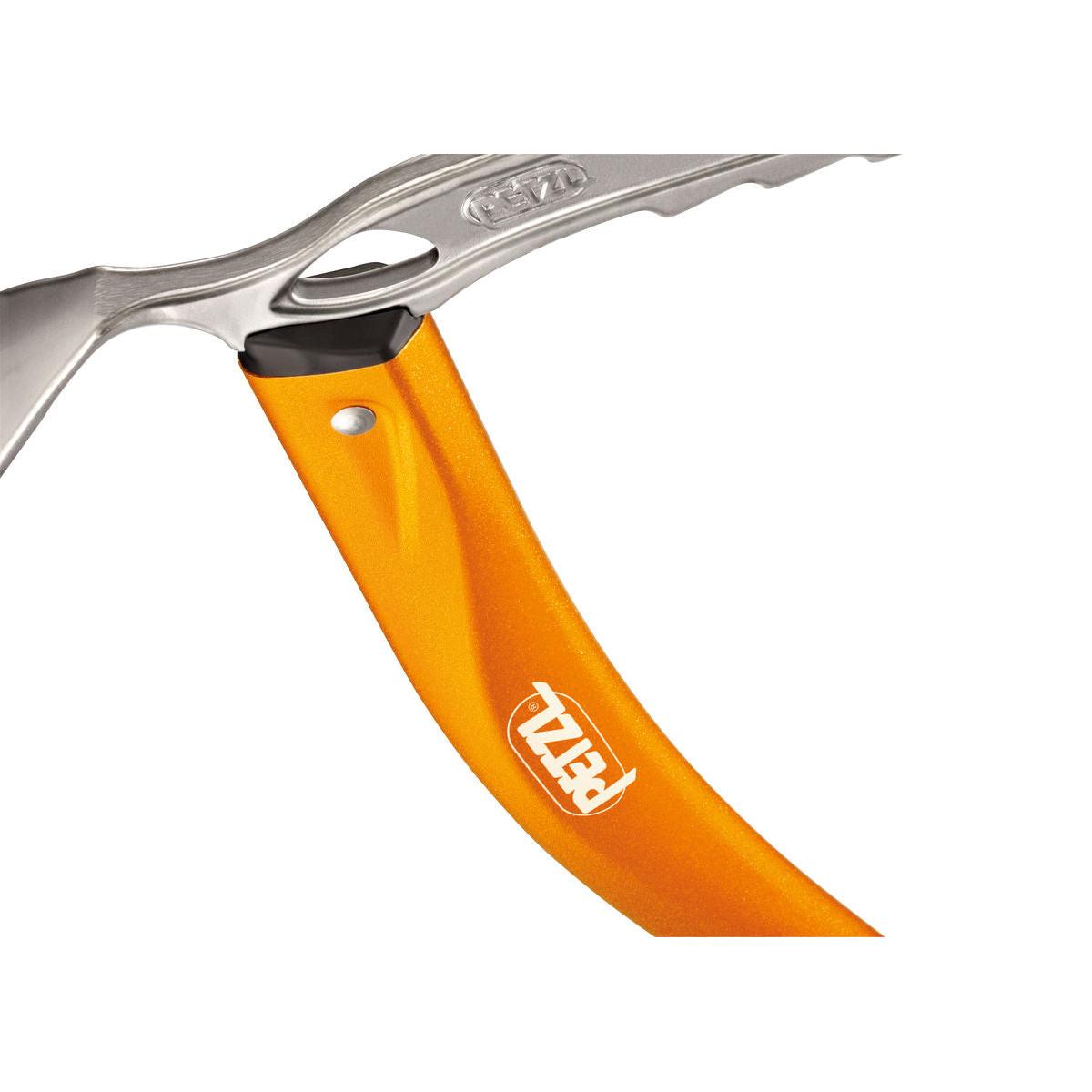

• Forged and well-balanced head provides very good anchoring qualities
• High-quality aluminum shaft (7075 aluminum, used in aeronautics) with anodized finish for excellent protection

Head, Pick, and Spike

• Head and pick in hot-forged steel for solid anchoring

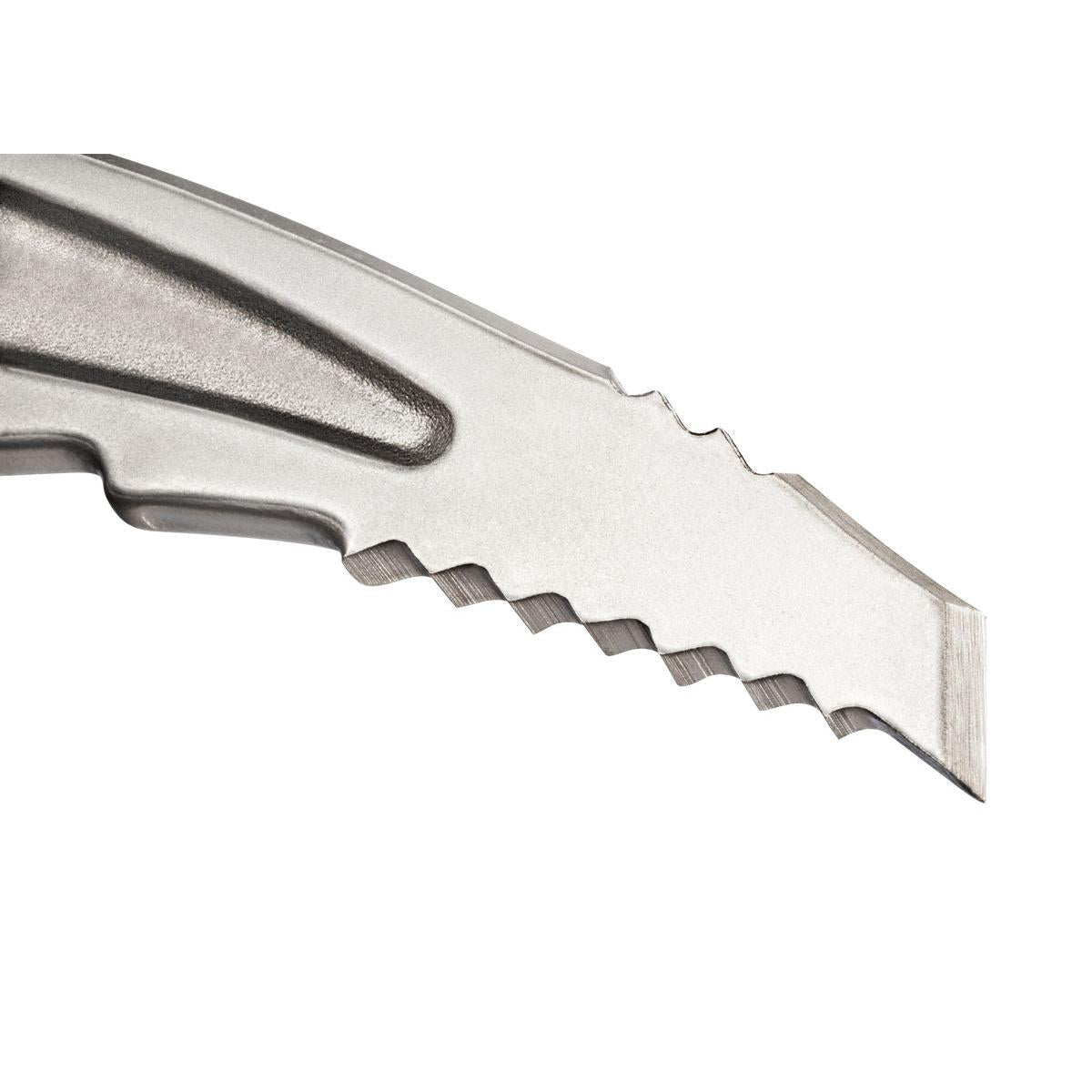

• Thin (3 mm) toothed pick for good anchoring quality in hard snow and ice
• Pick thicker in the middle to favor anchoring in soft snow
• Teeth on upper part of pick strengthen hold on the ice axe in piolet-rampe mode
• Durable spike in stainless steel for very good penetration in hard snow in piolet-canne mode
• Durable steel adze with comfortable support surface; edges allow stairs to be carved efficiently
• Tilted adze directs the axe correctly into the snow for piolet-canne usage
• Head and spike equipped with holes for clipping a carabiner or attaching a sling

Grip and Compatibility

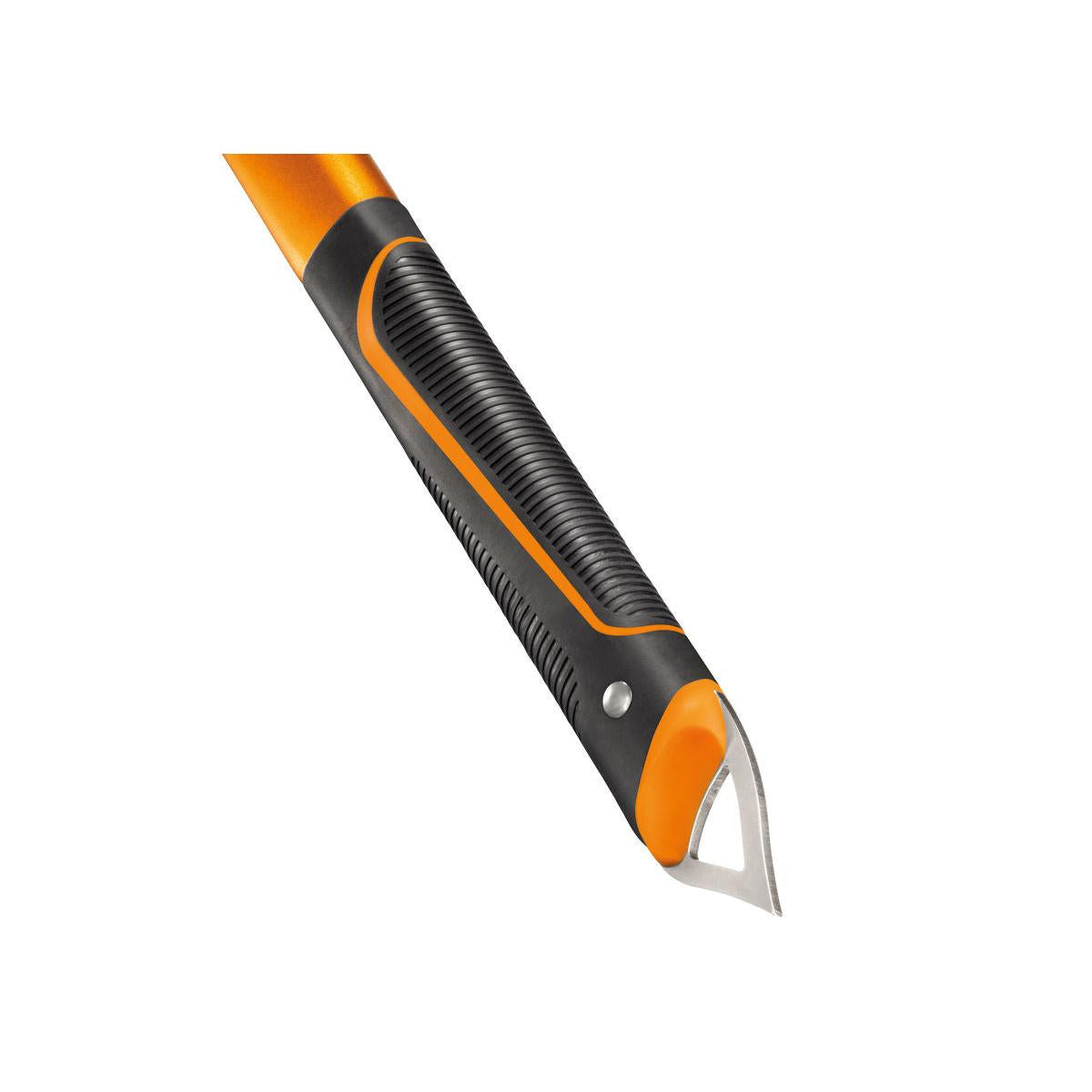

• Hydroformed handle for good grip at the curve
• Ice axe compatible with LINKIN leash

Included Accessories

• Protective caps for ice axe pick and spike

Available Sizes

• Length 52 cm; Weight 400 g; Guarantee 3 years; Price $199.95
• Length 59 cm; Weight 420 g; Guarantee 3 years; Price $199.95
• Length 66 cm; Weight 450 g; Guarantee 3 years; Price $199.95
